L 100

Busbar support made of Duroplast

Products » Busbar support » Made of duroplast » L 100

L 100

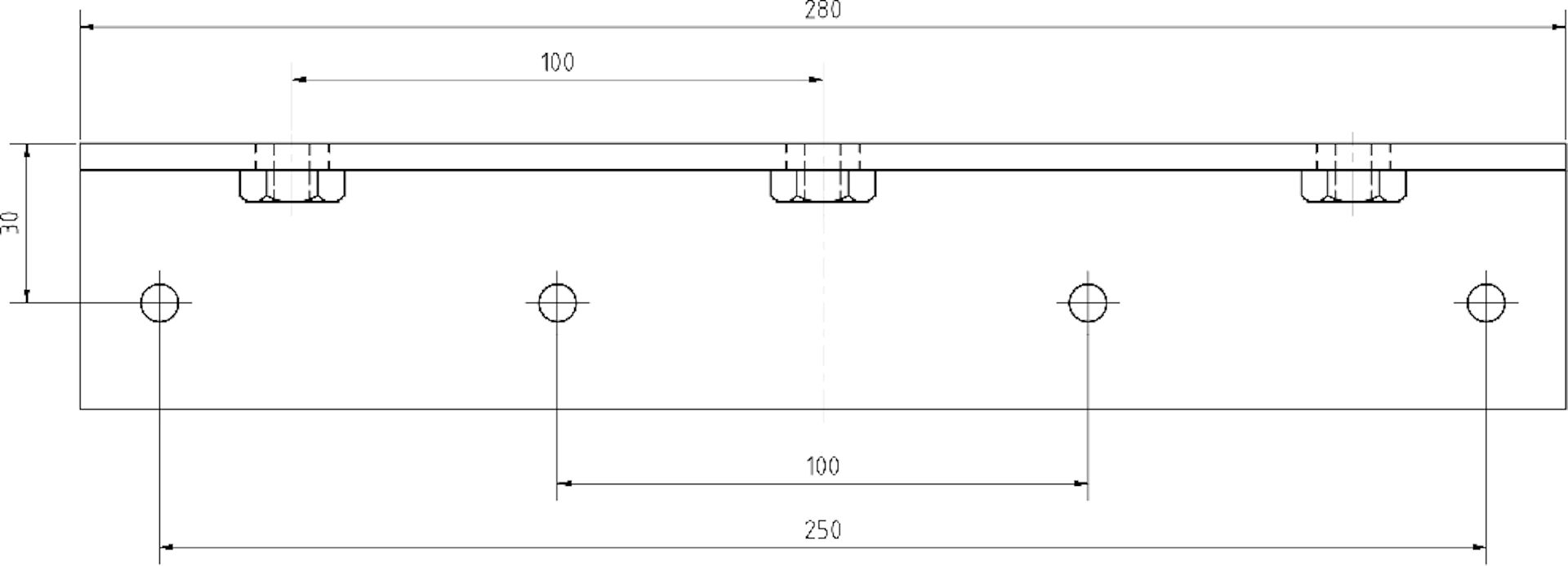

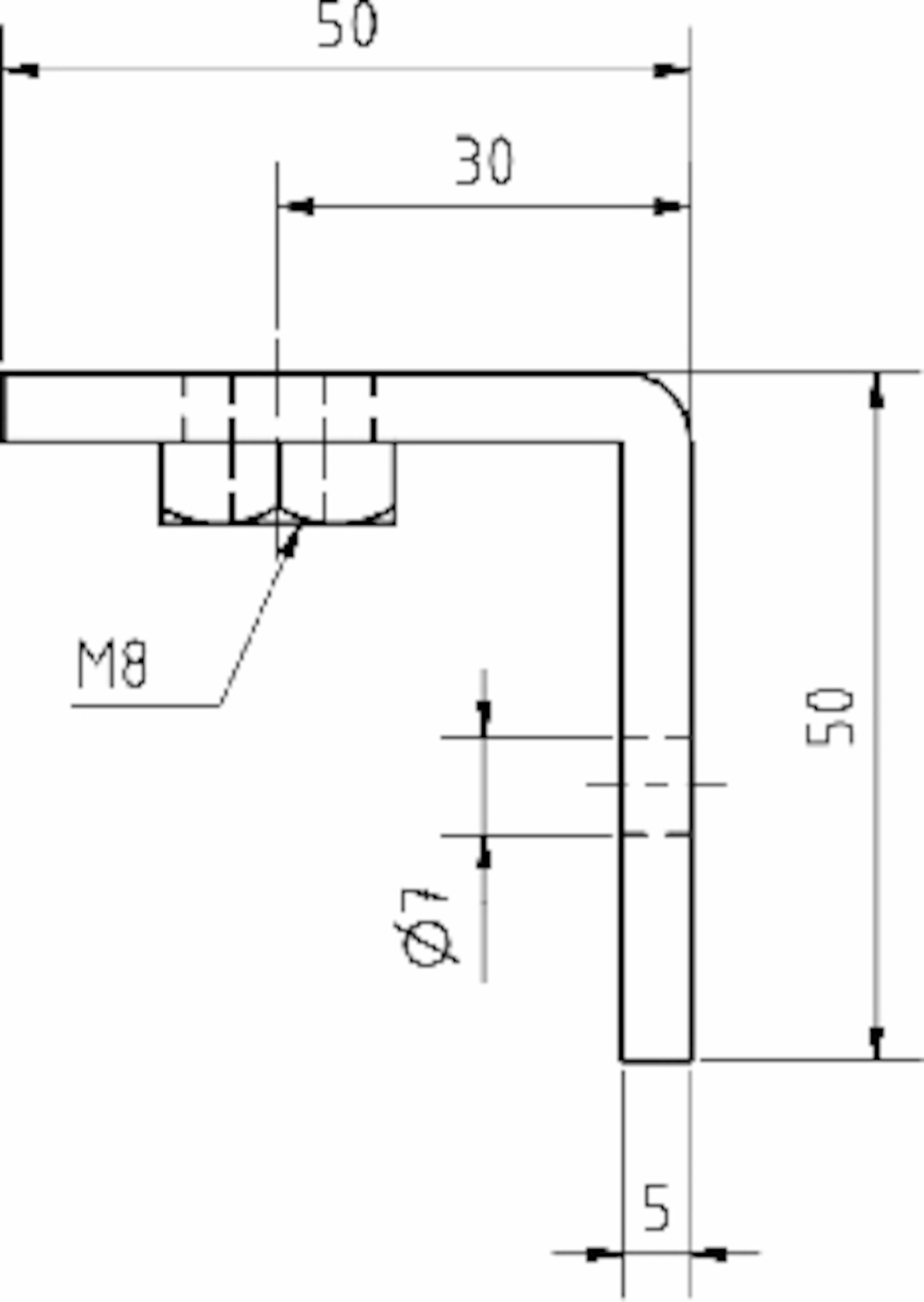

Product features

5

Operating AC voltage 1000 V

5

Continuous current over 2500 A

5

Phase distance 100 mm

Order number	Color
011100	grey

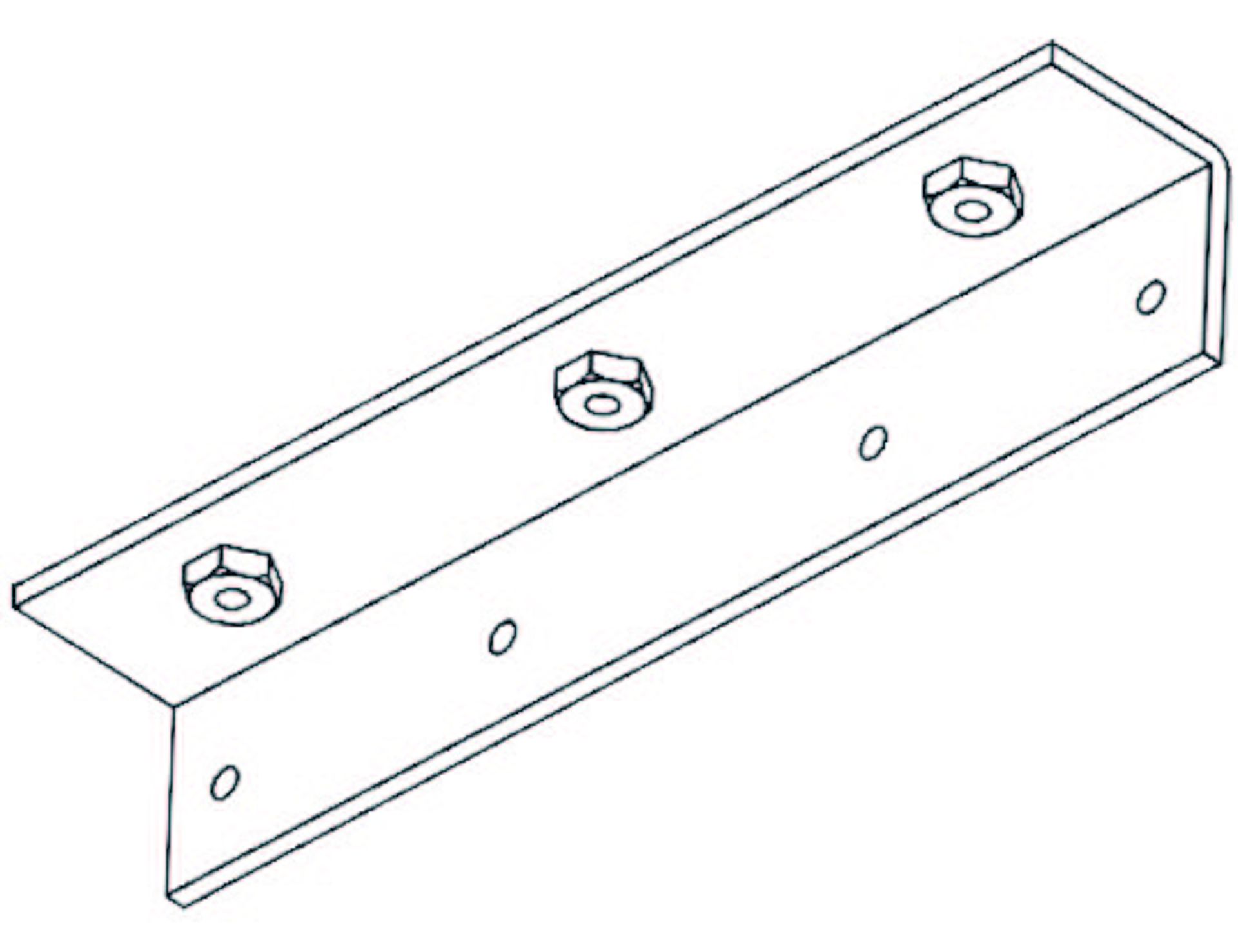

Mounting example

Product details

For horizontal busbars 10 mm thick, made of E-Cu F30 bright. In accordance with DIN 43671, the table contains the continuous currents for 35°C air and 75°C rail temperature, due to the very heat-resistant substrate material.

Test reports can be provided if required.

Height x_Thickness	Continuous current in A ~ to 60 Hz		Cross section	Weight
	Number of rails	Number of rails
mm	1	2	mm²	kg/m
30 x 10	670	1240	299	2,66
40 x 10	840	1510	399	3,55
50 x 10	1000	1770	499	4,44
60 x 10	1155	2015	599	5,33
80 x 10	1450	2470	799	7,11

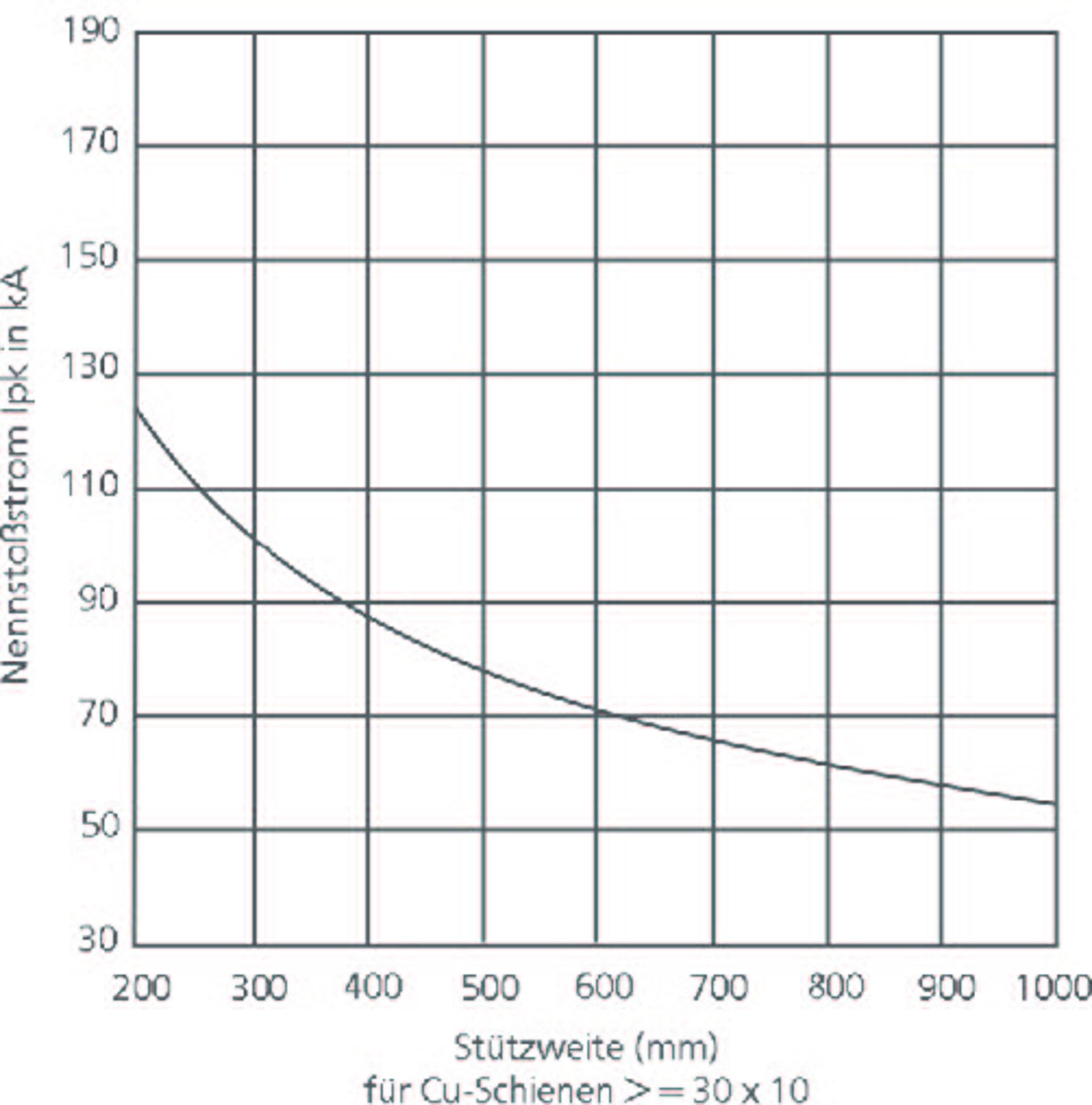

Other

Raw material properties

Heat resistance according to Martens	DIN 53462	°C	>150
Bulk density	ISO 1183	g/cm³	1,75
Fire behavior	UL 94	Klasse	HB
Volume resistivity	IEC 60093	Ohm cm	10¹²
Dielectric strength (90°C vertical)	IEC 60243	kV/3 mm	38
Tracking resistance	IEC 60112	CTI	600
Halogens	None (hatchet test)

The data we quote are subject to certain tolerances, both due to the manufacturing process and the primary products used. They are therefore average values, i.e. non-binding guide values, from which no warranty claims can be derived. We reserve the right to make changes!
