SH 100

Busbar support made of Duroplast

Products » Busbar support » Made of duroplast » SH 100

SH 100

4-hole mounting

2-hole mounting

Product features

Type-tested according to DIN EN 61439-1 (VDE 0660-600-1): 2012-06; EN 61439:2011

5

2- and 4-hole mounting

5

Operating AC voltage 1000 V

5

Continuous current over 4000 A

5

Phase distance 100 mm

Order number	Color
010100	brown
010200	grey

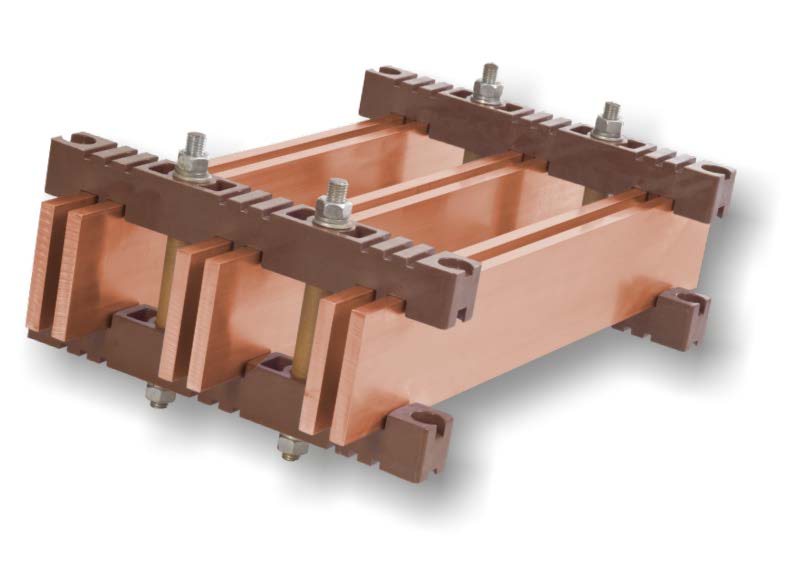

Mounting example

Product details

Height x_Thickness	Continuous current in A ~ up to 60 Hz	g/cm³		Cross section	Weight
	Number of rails	Number of rails	Number of rails
mm	1	2	3	mm²	kg/m
20 x 5	320	590	810	99	0,88
30 x 5	445	790	1050	149	1,33
40 x 5	565	980	1280	199	1,77
50 x 5	685	1170	1475	249	2,22
20 x 10	500	965		199	1,77
30 x 10	670	1240		299	2,66
40 x 10	840	1510		399	3,55
50 x 10	1000	1770		499	4,44
60 x 10	1155	2015		599	5,33
80 x 10	1450	2470		799	7,11
100 x 10	1745	2900		999	8,89
120 x 10	2035	3350		1200	10,70
160 x 10	2700	4350		1600	14,20

Other

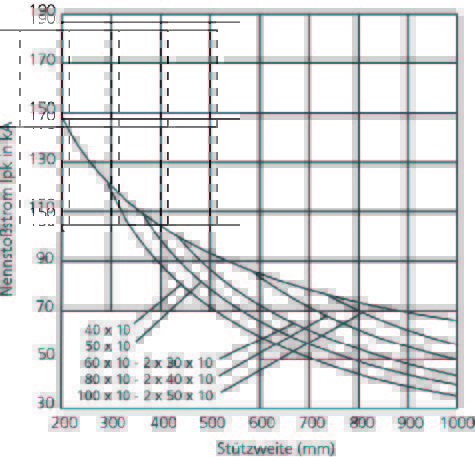

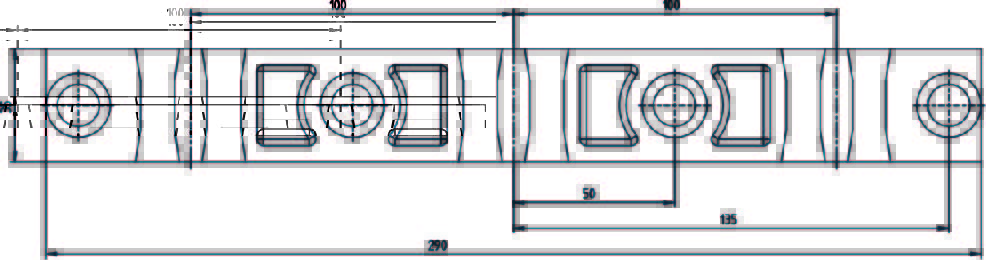

2-hole

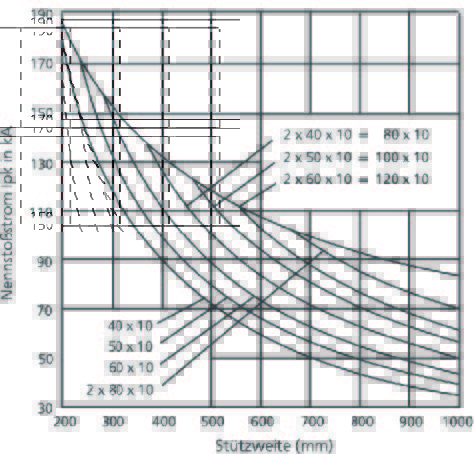

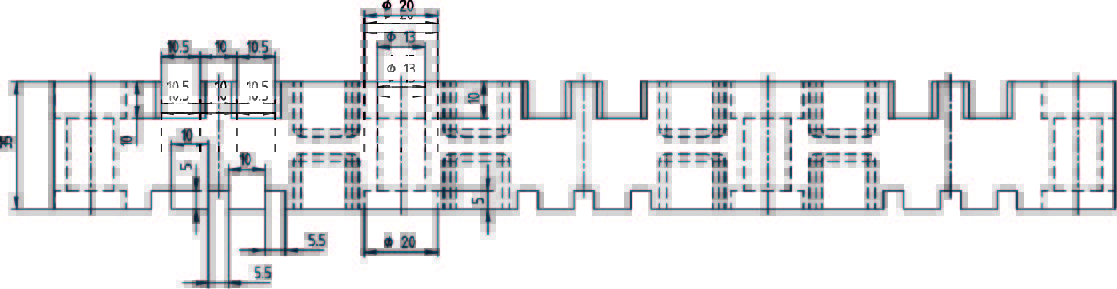

4-hole

Raw material properties

5

glass fiber reinforced polyester resin (UP)

5

DIN type 803 (self-extinguishing)

5

Color: brown or light grey (other colors on request)

5

Temperature range from -40 to +130 °C

Shape retention HDT-A	ISO 75	°C	>250
Bulk density	ISO 1183	g/cm³	1,75
Fire behavior	UL 94	Klasse	V0 bei 3,2 mm
Volume resistivity	IEC 60093	Ohm cm	10¹⁴
Surface resistance	IEC 60093	Ohm	10¹²
Dielectric strength (1 mm)	IEC 60243	kV/mm	20
Tracking resistance	IEC 60112	CTI	600

The data we quote are subject to certain tolerances, both due to the manufacturing process and the primary products used. They are therefore average values, i.e. non-binding guide values, from which no warranty claims can be derived. We reserve the right to make changes!
