SH 70

Busbar support made of Duroplast

Products » Busbar support » Made of duroplast » SH 70

SH 70

Product features

Type-tested according to DIN EN 61439-1 (VDE 0660-600-1): 2012-06; EN 61439-1:2011

5

Operating AC voltage 1000 V

5

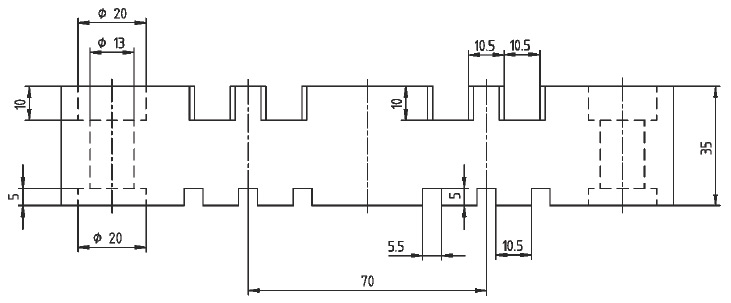

Phase distance 70 mm

5

two-pole for N + PE

Order number	Color
010070	brown
010075	grey

Mounting example

Other

Raw material properties

5

glass fiber reinforced polyester resin (UP)

5

DIN type 803 (self-extinguishing)

5

Color: brown or light grey (other colors on request)

5

Temperature range from -40 to +130 °C

Shape retention HDT-A	ISO 75	°C	>250
Bulk density	ISO 1183	g/cm³	1,75
Fire behavior	UL 94	Klasse	V0 bei 3,2 mm
Volume resistivity	IEC 60093	Ohm cm	10¹⁴
Surface resistance	IEC 60093	Ohm	10¹²
Dielectric strength (1 mm)	IEC 60243	kV/mm	20
Tracking resistance	IEC 60112	CTI	600

The data we quote are subject to certain tolerances, both due to the manufacturing process and the primary products used. They are therefore average values, i.e. non-binding guide values, from which no warranty claims can be derived. We reserve the right to make changes!
